RGB to NTSC Encoder

A design was done as a consultant to design, verify, and fabricate an RGB to NTSC Encoder.

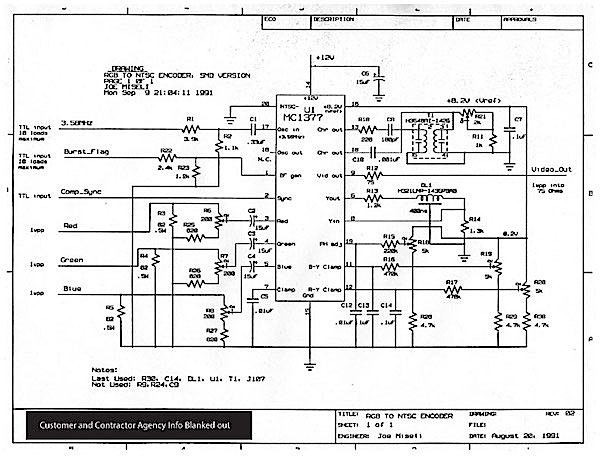

RGB to NTSC Encoder Circuit

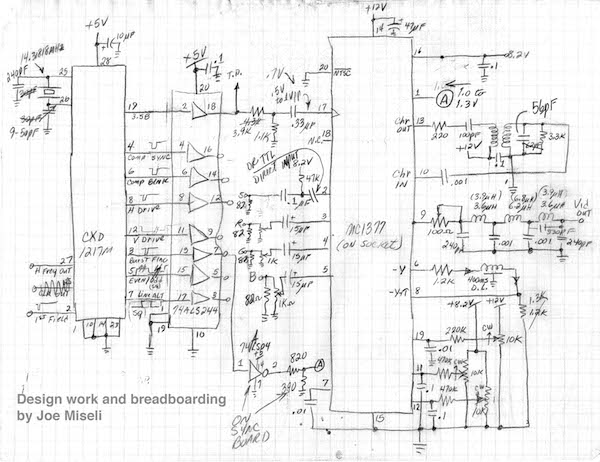

How can one test an NTSC encoder? The answer is design and breadboard a compatible circuit that will provide the correct driving and synchronization to the encoder. Here is the synchronizing circuit.

Sync Generator

The CXD 1217M IC is an NTSC-compatible synchronizing signal generator for color video cameras.
